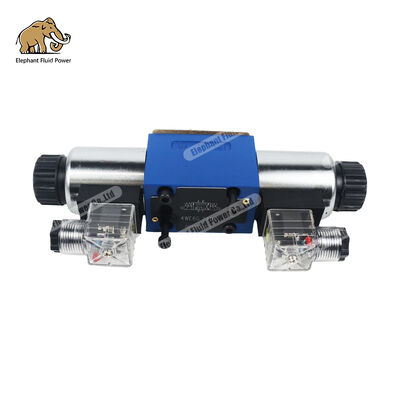

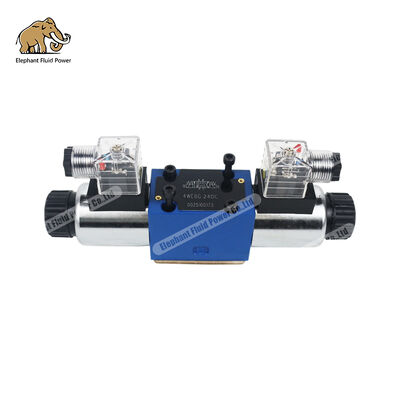

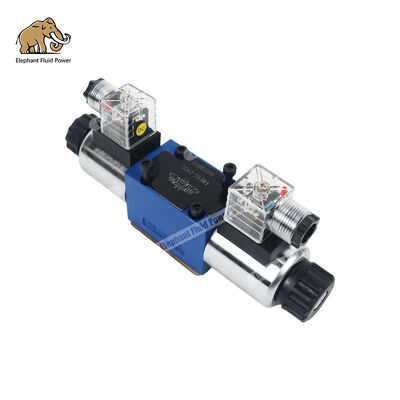

Original Parts Rexroth 4WE6G Directional Spool Valve with Stainless Steel Construction and 350 Bar Operating Pressure

Image Grand : Original Parts Rexroth 4WE6G Directional Spool Valve with Stainless Steel Construction and 350 Bar Operating Pressure

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Elephant Fluid Power
Certification:	ISO9001,CE
Numéro de modèle:	4WE6G

Conditions de paiement et expédition:

Quantité de commande min:	1
Détails d'emballage:	Boîte de carton, cas en bois
Délai de livraison:	7-10 jours
Conditions de paiement:	T/T, Western Union, Paypal, et vous pouvez nous envoyer des chèques.
Capacité d'approvisionnement:	300 ensembles par mois

Contact

Original Parts Rexroth 4WE6G Directional Spool Valve with Stainless Steel Construction and 350 Bar Operating Pressure

description de

Avantage:	Bonne qualité et livraison rapidement	Compatible:	remplacement 100% pour l'original
Délai de mise en œuvre:	7 jours	Prix:	Competitive price
Matériel:	Acier inoxydable, fonte	Application:	Réparation de machine de construction
Garantie:	Un an
Mettre en évidence:	Stainless Steel Directional Spool Valve , 350 Bar Operating Pressure Hydraulic Valve , 80 L/min Max Flow 4WE6G Valve

Original Parts Rexroth Directional Spool Valve 4WE6G

Elephant Fluid Power provides Original Parts Rexroth Directional Spool Valve 4WE6G, featuring excellent quality, competitive pricing, fast lead times, and comprehensive after-sales services.

Technical Specifications

The 4WE type electromagnetic directional valve features a magnetic guide sleeve thread that screws directly into the upper thread of the valve body. The thrust generated when the electromagnet is energized directly drives the spool valve for reversing movement, controlling oil direction for start, stop, and commutation operations. Available in four voltage options: 12V, 24V, 110V, and 220V.

Product Family	WE6../E
Maximum Operating Pressure	350.0 bar
Maximum Flow	80.0 l/min
Spool Symbol	Symbol G
Connection Type	Subplate Mounting
Size	6
Actuation Type	Solenoid Actuation
Number of Ports	4
Number of Switching Positions	3
Supply Voltage	24 VDC
Electrical Connector	Connector, 3-pole (2 + PE)
Electrical Connection Description	Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic Fluid	HFC HL HLP HLPD HVLP HVLPD
Seals	NBR
Weight	1.96 kg

4WE Valve Product Range

12V Models: 4WE6GA61B/CG12N9Z4, 4WE6GA61B/CG12N9Z4/FS1, 4WE6GA61B/CG12N9Z4/FS2, 4WE6GA61B/CG12N9Z5L

24V Models: 4WE6GA61B/CG24N9DL, 4WE6GA61B/CG24N9K4, 4WE6GA61B/CG24N9Z4, 4WE6GA61B/CG24N9Z4/FB1, 4WE6GA61B/CG24N9Z4/FS1, 4WE6GA61B/CG24N9Z4/FS2, 4WE6GA61B/CG24N9Z4/V, 4WE6GA61B/CG24N9Z5L, 4WE6GA61B/CG24N9Z5L/FS2, 4WE6GA61B/CG24N9Z5L/V, 4WE6GA61B/CG24N9Z5LB10

Additional Hydraulic Products

In addition to hydraulic valves, we supply comprehensive hydraulic solutions including pumps, motors, and replacement parts from leading global manufacturers.

Rexroth	A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
Kawasaki	K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750
KAYABA	MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series
Komatsu	HPV 35/55/90/160 (PC60/120/200/220/300-3/5, PC400, PC650)
Libherr	LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140
Toshiba	PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25
Linder	HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260
Sauer	PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334
Eaton	3321/3331, 4621/4631, 5421/5431, 78461/78462
Vicker	PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90
Yuken	A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180
Parker	PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100
Hitachi	HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57
Tokiwa	MKV23/33
Uchida	A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172
Nachi	YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34

Elephant Fluid Power Co., Ltd is a professional company integrated with hydraulic product manufacture, trade and technical service. We focus on superior quality, comprehensive service, competitive pricing, and provide complete solutions including free maintenance suggestions and technical consultation. We supply worldwide brand hydraulic products including Rexroth, Sauer, Vickers, Kawasaki, Linde, Eaton, Komatsu and more. We export to over 110 countries including America, Canada, Mexico, Peru, Russia, Czech Republic, Slovakia, Morocco, Ghana, Thailand, India and many others.
